Product
7kW - 11kW Generac Generator Wire /Generator Purchase Add On (Copper) Part#7AOCU
THIS PRICING IS ONLY AVAILABLE WHEN PURCHASED AND SHIPPED WITH A GENERATOR! CLICK HERE TO PURCHASE THIS WIRE SEPARATELY!
**Need more than 100' with your generator purchase? Call for pricing: 1-888-294-5537

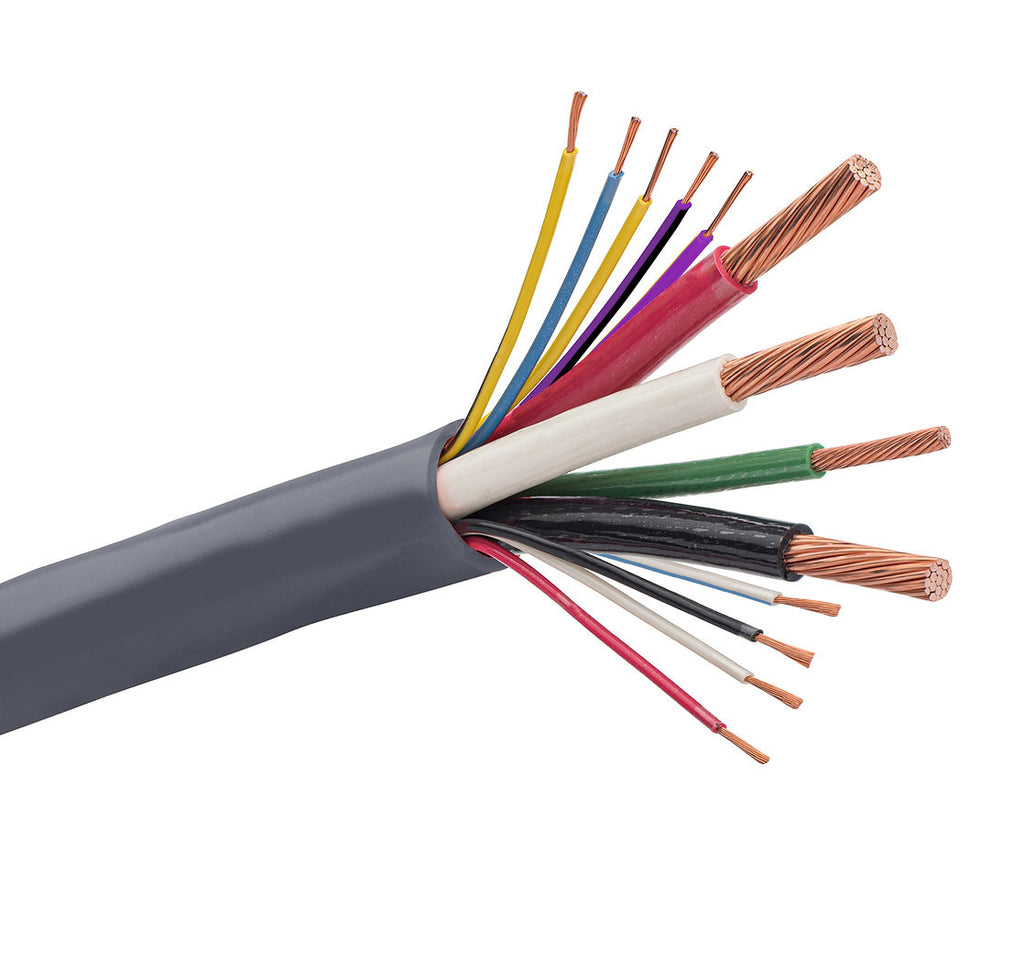

**This Multi Conductor Cable includes the following stranded copper conductors: Three #8AWG - One #10AWG - Nine #18AWG
**This is an all-inclusive cable that includes all conductors necessary to connect your generator to the transfer switch. We recommend you measure the linear distance between the generator and transfer switch. The exact path the wire will be installed. Add 5' in length for connections within the generator and transfer switch.
**Many jurisdictions across the United States have their own rules, standards and interpretation of the NEC. You are responsible to confirm acceptance by your Authority Having Jurisdiction. See the spec sheet to provide them for approval. There are no returns or refunds once your order has been processed and the wire has been cut.
SALE OF CUT WIRE IS FINAL AND NO RETURNS WILL BE ACCEPTED
Generator 7kW - 11kW Generac Aluminum Generator Wire / Technical Specs:
Click Here To See Spec Sheet
Wire Outer Diameter = .715"
Wire Jacket Print Legend
(UL) E60544-PA POWER AND CONTROL TRAY CABLE TYPE TC-ER-JP 8 AWG (8,37 mm2) 3/C + 10 AWG (5,26 mm2) 1/C
GROUND THHN/THWN CONDS 90C DRY/75C WET & 18 AWG (0,82 mm2) 9/C TFFN CONDS 600V OIL RES I SUN RES DIR
BUR OR c(UL) CIC/TC TYPE PVC/N -25C 90C DRY/75C WET 600V FT4 JOIST PULL TCERDirect.com PN 2023TCERJP0711CU9 "sequential footage print"
A) (3) - #8 AWG Class C stranded, soft drawn, bare copper circuit
conductors w/30 mils (0.76 mm) heat and moisture resistant,
polyvinyl chloride (PVC) insulation and jacketed w/ 5 mils (0.13
mm) nylon applied directly to the surface of the insulation
B) (9) - #18 AWG Class K stranded, soft drawn, bare copper
conductors w/15 mils (0.38 mm) heat and moisture resistant,
polyvinyl chloride (PVC) insulation and jacketed w/ 4 mils (0.10
mm) nylon applied directly to the surface of the insulation.
C) (1) - #10 AWG Class C stranded, soft drawn, bare copper
grounding conductor w/48 mils (1.22 mm) heat and moisture
resistant, polyvinyl chloride (PVC) insulation and jacketed w/ 4
mils (0.10 mm) nylon applied directly to the surface of the
insulation
D) Mylar binder tape
E) 60 mils (1.524 mm) of heat and moisture resistant, polyvinyl
chloride (PVC) jacket. A ripcord shall be placed underneath the
jacket.
Associated to Generator Models: 7171, 7172, 7029, 7030, 7031, 7032, 7033
Description
THIS PRICING IS ONLY AVAILABLE WHEN PURCHASED AND SHIPPED WITH A GENERATOR! CLICK HERE TO PURCHASE THIS WIRE SEPARATELY!
**Need more than 100' with your generator purchase? Call for pricing: 1-888-294-5537
**This Multi Conductor Cable includes the following stranded copper conductors: Three #8AWG - One #10AWG - Nine #18AWG
**This is an all-inclusive cable that includes all conductors necessary to connect your generator to the transfer switch. We recommend you measure the linear distance between the generator and transfer switch. The exact path the wire will be installed. Add 5' in length for connections within the generator and transfer switch.
**Many jurisdictions across the United States have their own rules, standards and interpretation of the NEC. You are responsible to confirm acceptance by your Authority Having Jurisdiction. See the spec sheet to provide them for approval. There are no returns or refunds once your order has been processed and the wire has been cut.
SALE OF CUT WIRE IS FINAL AND NO RETURNS WILL BE ACCEPTED
Generator 7kW - 11kW Generac Aluminum Generator Wire / Technical Specs:
Click Here To See Spec Sheet
Wire Outer Diameter = .715"
Wire Jacket Print Legend
(UL) E60544-PA POWER AND CONTROL TRAY CABLE TYPE TC-ER-JP 8 AWG (8,37 mm2) 3/C + 10 AWG (5,26 mm2) 1/C
GROUND THHN/THWN CONDS 90C DRY/75C WET & 18 AWG (0,82 mm2) 9/C TFFN CONDS 600V OIL RES I SUN RES DIR
BUR OR c(UL) CIC/TC TYPE PVC/N -25C 90C DRY/75C WET 600V FT4 JOIST PULL TCERDirect.com PN 2023TCERJP0711CU9 "sequential footage print"
A) (3) - #8 AWG Class C stranded, soft drawn, bare copper circuit
conductors w/30 mils (0.76 mm) heat and moisture resistant,
polyvinyl chloride (PVC) insulation and jacketed w/ 5 mils (0.13
mm) nylon applied directly to the surface of the insulation
B) (9) - #18 AWG Class K stranded, soft drawn, bare copper
conductors w/15 mils (0.38 mm) heat and moisture resistant,
polyvinyl chloride (PVC) insulation and jacketed w/ 4 mils (0.10
mm) nylon applied directly to the surface of the insulation.
C) (1) - #10 AWG Class C stranded, soft drawn, bare copper
grounding conductor w/48 mils (1.22 mm) heat and moisture
resistant, polyvinyl chloride (PVC) insulation and jacketed w/ 4
mils (0.10 mm) nylon applied directly to the surface of the
insulation
D) Mylar binder tape
E) 60 mils (1.524 mm) of heat and moisture resistant, polyvinyl
chloride (PVC) jacket. A ripcord shall be placed underneath the
jacket.
Associated to Generator Models: 7171, 7172, 7029, 7030, 7031, 7032, 7033
