SmoothStarter SS230V1P16-32 Scroll (16-32 RLA) Single Phase
NO MORE DIMMING LIGHTS WHEN YOUR AC TURNS ON

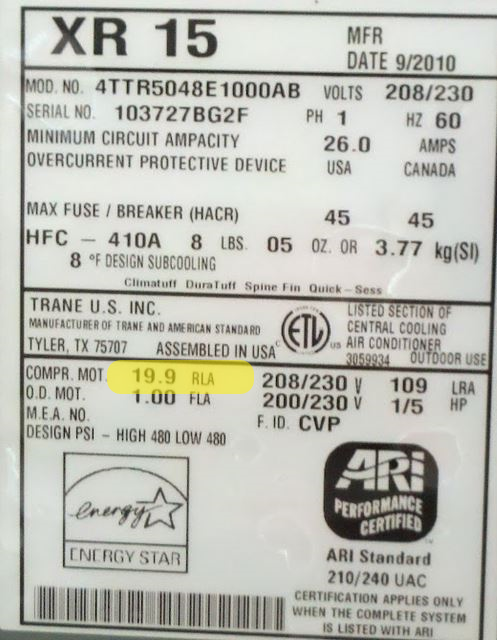

This model ONLY works on compressors with RLA (Rated Load Amps) between 16 Amps and 32 Amps. CLICK HERE TO SEE SS230V1P08-16 Scroll (8-15.9 RLA) Single Phase

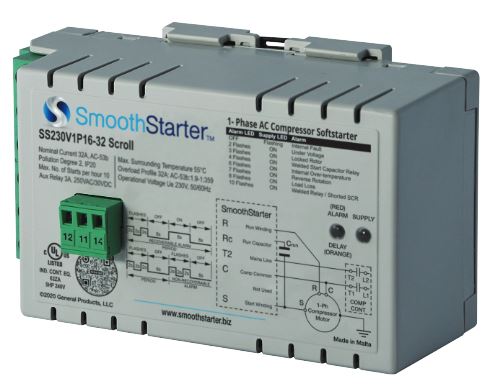

This product has been developed specifically to soft start large single phase compressors and motors. It provides a dramatic reduction in the inrush starting current but still provides full start-up torque for compressors and motors. Single phase smooth starters will automatically adjust to cover a range of 1.75 HP to 7 HP to provide a sure start soft start. It is fully self-contained in a conveniently small, double insulated and flame retardant enclosure. Diminish dimming lights during AC start-up on utility or generator power.
**SmoothStarter is ETL, CE and RoHS compliant**
How it works:
SmoothStarter is a direct replacement of the start capacitor in your AC unit. SmoothStarter soft starter provides a gentle acceleration up to full speed. Used only at startup to cause a sure start. This gradual start is achieved by ramping up the initial voltage to the motor providing a soft start. This will eliminate light flicker, reduce start-up noise, and extend the life of the motor or compressor. In 8-10 starts the SmoothStarter will achieve full reduction of LRA starting current. The soft start should extend the life of the compressor or motor.
ALLOW US TO HELP YOU BEFORE YOU PURCHASE. Do you have a different configuration than our wiring diagram? Or do you simply need help? Best procedure is to email your request and 4 pictures to support@tcerdirect.com 1) Nameplate 2) Wiring Diagram 3) Wiring Compartment from two different angles. Or Call with the same information: 844-436-7761 option 1 for tech support
Disclaimer: We strongly urge that SmoothStarter be installed by a qualified, licensed technician. Installation requires schematic reading, component identification, and wiring connections. There are many condenser configurations. A knowledgeable tech can determine the appropriate wiring. Tech support is offered at the email and phone number above. When wiring by yourself, you do so at your own risk. Damage caused by installation errors will not qualify for warranty replacement.
Features & Benefits
- Package includes wiring jumpers and instructions
- Rated for motors between 1.75 HP to 7 HP
- Reduces Locked Rotor Amperage (LRA = Starting Current = Inrush Current) up to 70% at start-up
- Can reduce light flicker
- Reduces start-up noise
- Avoids torque stress fracture on pipes
- Automatic optimization of motor start-up current
- Reduced stress and heating of compressor/motor therefore extending the life
- Allows systems to meet certain utility requirements
- Easy installation with supplied wiring (special wiring options available)
- Generac generator benefits from soft start causing less voltage dip on start-up
- May allow customer to consider a smaller generator than otherwise needed
- SmoothStarter limited warranty is 1 year from date of installation
Motor Protection Functions
- Protects the compressor/motor from stalling at low voltages
- Delay function limits number of motor starts per hour
- Thyristor protected for long life
- No additional motor contactor needed
- Provides motor reversal protection during short power outages
- Internal delay timers prevents rapid cycling in fault conditions
- Provides brownout protection Self-testing diagnostics
- Applicable for scroll compressors and piston compressors
- Check with you manufacturer for compatibility
- It is recommended to be installed by a licensed, qualified HVAC technician
