Product

17kW - 24kW Generac Generator Wire / Sold Separately (Copper) Part#17SSCU

In stock



STARTING AT $13.03 THE PRICE PER FOOT DECREASES AS LENGTH INCREASES. CHOOSE LENGTH TO SEE YOUR TOTAL SHIPPED PRICE

**This wire is sold and shipped separately. Click Here when purchasing a generator for add on pricing

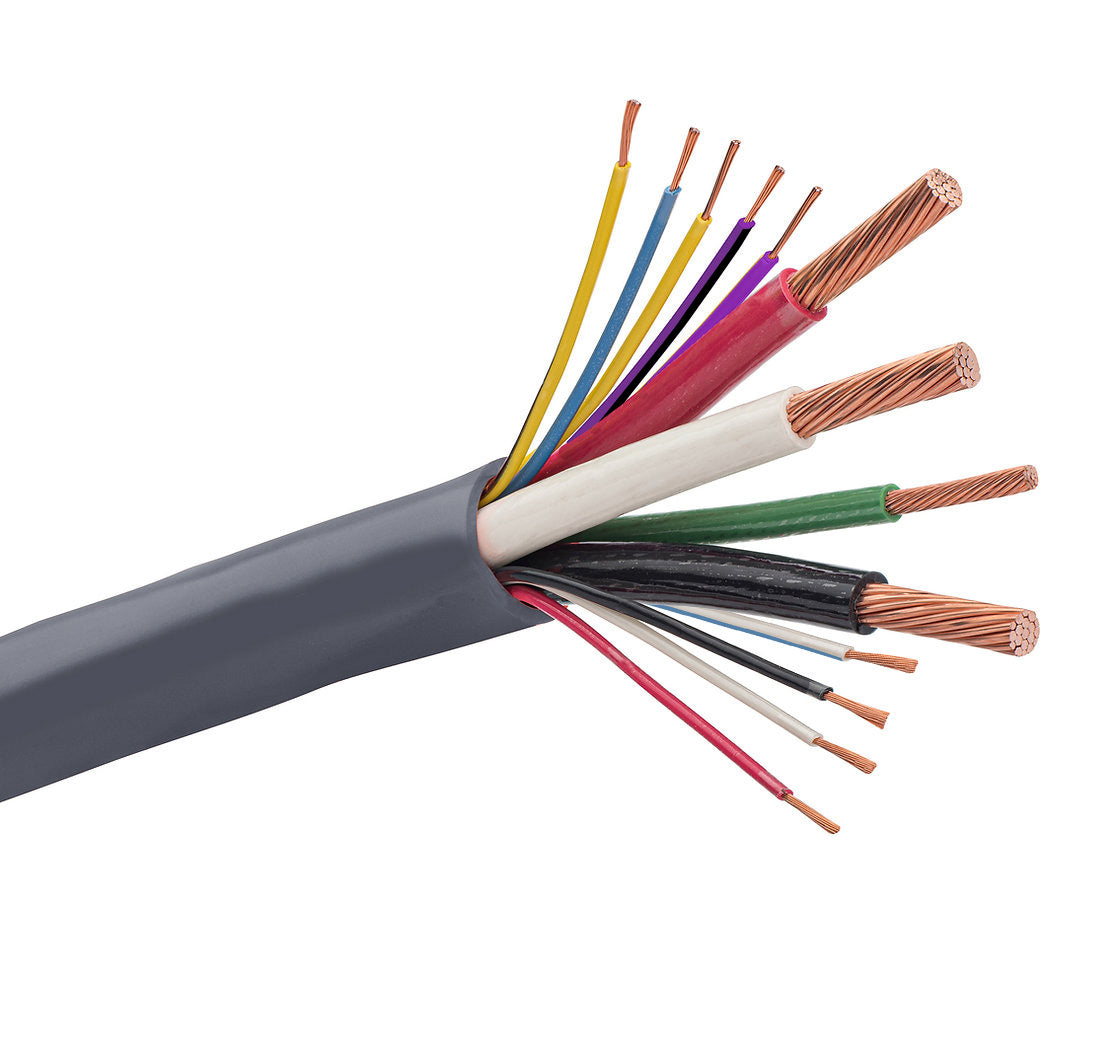

**This Multi Conductor Cable includes the following stranded copper conductors: Three #3AWG - One #8AWG - Nine #18AWG

**This is an all inclusive cable that includes all conductors necessary to connect your generator to the transfer switch. We recommend you measure the linear distance between the generator and transfer switch. The exact path the wire will be installed. Add 5' in length for connections within the generator and transfer switch.

**Many jurisdictions across the United States have their own rules, standards and interpretation of the NEC. You are responsible to confirm acceptance by your Authority Having Jurisdiction. See the spec sheet to provide them for approval. There are no returns or refunds once your order has been processed and the wire has been cut.

SALE OF CUT WIRE IS FINAL AND NO RETURNS WILL BE ACCEPTED

250' ORDERS NORMALLY TAKE 7-10 DAYS TO LEAVE FACTORY - THIS IS NO GUARANTEE - WE ARE UNABLE TO PROVIDE TRACKING OR CHECK LEAD TIMES ON 250' ORDERS

Additional $75.00 shipping fee may apply for residential or lift gate service on 250' orders

Ziller Electric does not endorse this wire being used with a 26kW air cooled generator

Click Here To See Spec Sheet

Wire Outer Diameter = .98"

Wire Jacket Print Legend
(UL) E60544-PA POWER AND CONTROL TRAY CABLE TYPE TC-ER-JP 3 AWG (26,7 mm2) 3/C + 8 AWG (8,37 mm2) 1/C
GROUND THWN CONDS 75C DRY/75C WET & 18 AWG (0,82 mm2) 9/C TFFN CONDS 600V OIL RES I SUNLIGHT
RESISTANCE DIRECT BURIAL JOIST PULL TCERDirect.com PN TCERJP 1724G+2 "sequential footage print"

Components:

A) (3) - #3 AWG Class C stranded, soft drawn, bare copper circuit
conductors w/40 mils (1.02 mm) heat and moisture resistant,
polyvinyl chloride (PVC) insulation and jacketed w/ 6 mils (0.15
mm) nylon applied directly to the surface of the insulation

B) (9) - #18 AWG Class K stranded, soft drawn, bare copper
conductors w/15 mils (0.38 mm) heat and moisture resistant,
polyvinyl chloride (PVC) insulation and jacketed w/ 4 mils (0.10
mm) nylon applied directly to the surface of the insulation

C) (1) - #8 AWG Class C stranded, soft drawn, bare copper
grounding conductor w/30 mils (0.76 mm) heat and moisture
resistant, polyvinyl chloride (PVC) insulation and jacketed w/ 5
mils (0.13 mm) nylon applied directly to the surface of the insulation

D) Mylar binder tape

E) 80 mils (2.03 mm) of heat and moisture resistant, polyvinyl
chloride (PVC) jacket. A ripcord shall be placed underneath the jacket

Specifications:

Conductors: ASTM B 3, ASTM B 8, ASTM B 174

Insulation: ICEA S-95-658 (NEMA WC 70), ICEA
S-73-532 (NEMA WC 57), UL 83 for Type THWN
wires

Jacket: ICEA S-95-658 (NEMA WC 70), ICEA
S-73-532 (NEMA WC 57), UL 1277

Ratings:

UL THWN 600V
UL Type TC-ER-JP 600V
The insulation is acceptable for use in locations at 75 °C dry and 75 °C
wet. The cable is suitable for use in cable trays, aerial or direct burial
installations. The cable is JP rated for installation in accordance with
Part II of Article 334.

The 2017 NEC, allows this wire to be installed without a conduit or flexible raceway unless subject to physical damage. Consult your authority having jurisdiction prior to installation.

Associated to Generator Models: 7226, 7228, 7042, 7043, 7209, 7210, 7038, 7039
