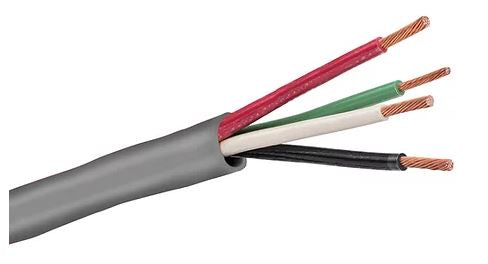

EV Charger Installation Wire #6 x 3 + #8 Ground Copper TCERJP (Trable)
INSTALLING YOUR EV (ELECTRIC VEHICLE) CHARGING STATION IS NOW QUICK AND EASY! OUR EV INSTALLATION WIRE (TRABLE) IS JUST WHAT YOU NEED!
STARTING AT $9.01 THE PRICE PER FOOT DECREASES AS LENGTH INCREASES. CHOOSE LENGTH TO SEE YOUR TOTAL SHIPPED PRICE
**This 4 Conductor EV Cable includes the following stranded copper conductors: Three #6AWG - One #8AWG
**EV Charging Station Wire Bundle (Can be used for other applications as well) Suitable for BEV and PHEV and all types of Level 2 electrical vehicle chargers for hybrid and zero-emissions vehicles. Providing power to your Electric Vehicle Supply Equipment. Confirm compatibility with your installation specs.
**UL LISTED * Direct Burial * Joist Pull * Exposed Runs * UV & Moisture Resistant * Crush & Impact Resistant * 75C Ampacity Rating. Always consult your Authority Having Jurisdiction prior to installation.
**This all inclusive durable EV cable is used to connect your EV Charging Outlet to your electrical panel. We recommend you measure the linear distance from your EV Charging Plug to your Electrical Panel and include additional wire for routing and terminations at both ends. The exact path the wire will be installed.
**The 2017 NEC, allows this wire to be installed surface mount without a conduit or flexible raceway unless subject to physical damage. Consult with your Authority Having Jurisdiction prior to installation.
**​Many jurisdictions across the United States have their own rules, standards and interpretation of the NEC. You are responsible to confirm acceptance by your Authority Having Jurisdiction. See the spec sheet to provide them for approval. There are no returns or refunds once your order has been processed and the wire has been cut.
SALE OF CUT WIRE IS FINAL AND NO RETURNS WILL BE ACCEPTED
250' ORDERS UNAVAILABLE UNTIL FURTHER NOTICE
Additional $75.00 shipping fee may apply for residential or lift gate service on 250' orders
EV Wire #6 x 3 W/Ground Copper TCERJP (Trable) Technical / Specs:
Wire Outer Diameter = .750"
Click Here To See Spec Sheet
Wire Jacket Print Legend:
(UL) E60544 POWER AND CONTROL TRAY CABLE TYPE TC-ER-JP 6 AWG (13,3 mm2) 3/C + 8 AWG (8,37 mm2) 1/C GROUND THWN CONDS 600V 75C DRY/75C WET OIL RES I SUNLIGHT RESISTANCE DIRECT BURIAL JOIST PULL PN CU-TCERJP-65A "sequential footage print"
A: (3) - #6 AWG Class C (19 strand), soft drawn, bare copper circuit conductors w/30 mils (0.76 mm) heat and
moisture resistant, polyvinyl chloride (PVC) insulation and jacketed w/ 5 mils (0.13 mm) nylon applied directly
to the surface of the insulation.
B: (1) - #8 AWG Class C (19 strand), soft drawn, bare copper grounding conductor w/30 mils (0.76 mm) heat and
moisture resistant, polyvinyl chloride (PVC) insulation and jacketed w/ 5 mils (0.13 mm) nylon applied directly
to the surface of the insulation
C: Non-hygroscopic fillers (as needed).
D: Mylar binder tape.
E: 60 mils (1.52 mm) of heat and moisture resistant, polyvinyl chloride (PVC) jacket. A ripcord shall be placed
underneath the jacket.
