Product
17kW - 24kW Generac Generator Wire Gray 8 control conductors / Sold Separately (Copper) Part#178SSCU
STARTING AT $13.23 THE PRICE PER FOOT DECREASES AS LENGTH INCREASES. CHOOSE LENGTH TO SEE YOUR TOTAL SHIPPED PRICE

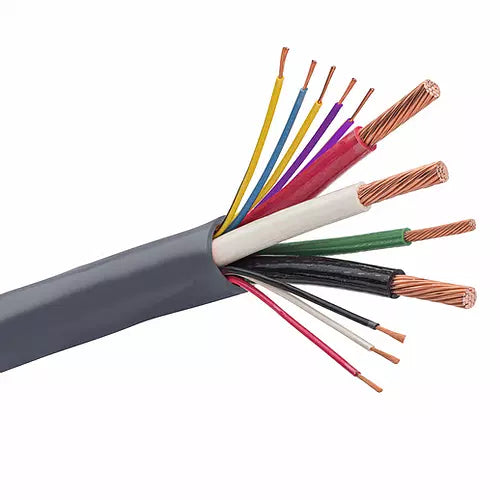

This Multi Conductor Cable includes the following stranded copper conductors: Three #3AWG - One #8AWG - Eight #18AWG
This is an all inclusive cable that includes all conductors necessary to connect your generator to the transfer switch. It includes 2 additional control conductors that can be used for a remote emergency stop. We recommend you measure the linear distance between the generator and transfer switch. The exact path the wire will be installed. Add 5' in length for connections within the generator and transfer switch.
SALE OF CUT WIRE IS FINAL AND NO RETURNS WILL BE ACCEPTED
250' ORDERS NORMALLY TAKE 7-10 DAYS TO LEAVE FACTORY - THIS IS NO GUARANTEE - WE ARE UNABLE TO PROVIDE TRACKING OR CHECK LEAD TIMES ON 250' ORDERS
Additional $75.00 shipping fee may apply for residential or lift gate service on 250' orders
Ziller Electric does not endorse this wire being used with a 26kW air cooled generator
Generator 17kW - 24kW Generac Copper Generator Wire / Technical Specs:
Wire Outer Diameter = .98"
Wire Jacket Print Legend
(UL) E60544 POWER AND CONTROL TRAY CABLE TYPE TC-ER-JP 3 AWG (26,7 mm2) 3/C + 8 AWG (8,37 mm2)
1/C GROUND THWN CONDS & 18 AWG (0,82 mm2) 8/C TFFN CONDS 600V 75C DRY/75C WET OIL RES I
SUNLIGHT RESISTANCE DIRECT BURIAL JOIST PULL GENERAC P/N TCERJP 1724G+2 "sequential footage print"
Components
A: (3) - #3 AWG Class C stranded, soft drawn, bare copper circuit conductors w/40 mils (1.02 mm) heat and
moisture resistant, polyvinyl chloride (PVC) insulation and jacketed w/ 6 mils (0.15 mm) nylon applied directly
to the surface of the insulation.
B: (8) - #18 AWG Class K stranded, soft drawn, bare copper conductors w/15 mils (0.38 mm) heat and moisture
resistant, polyvinyl chloride (PVC) insulation and jacketed w/ 4 mils (0.10 mm) nylon applied directly to the
surface of the insulation.
C: (1) - #8 AWG Class C stranded, soft drawn, bare copper grounding conductor w/30 mils (0.76 mm) heat and
moisture resistant, polyvinyl chloride (PVC) insulation and jacketed w/ 5 mils (0.13 mm) nylon applied directly
to the surface of the insulation
D: Mylar binder tape.
E: 80 mils (2.03 mm) of heat and moisture resistant, polyvinyl chloride (PVC) jacket. A ripcord shall be placed
underneath the jacket.
The 2017 NEC, allows this wire to be installed without a conduit or flexible raceway unless subject to physical damage. Consult your authority having jurisdiction prior to installation.
Associated to Generator Models: 7226, 7228, 7042, 7043, 7209, 7210, 7290, 7291
